Wilson 800 Mhz 2 Way Tap 75/25 Unequal Power Splitters, TV store at allTVstore.com

Product description

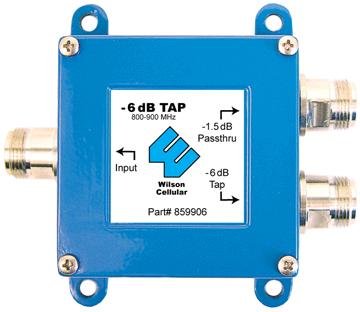

Brand New Wilson 800 MHz 2 Way Tap, 75/25 Unequal Power Splitters . Model # 859906. The Wilson Electronics 6dB Tap with 1.5dB Passthru (2-Way Unequal Splitter) (W-859906)is for use in signal distribution systems to split the amplified signal to up to 20 inside antennas with minimal signal loss. Features low-loss signal throughput with one -6dB tap. Weatherproof case for indoor or outdoor use. This Product is offered with N/Female connectors and is capable of handling 10W of power into a matched load. It is perfect for in-building use that requires the combining or dividing of RF to accommodate multiple antenna locations. To attach the splitter to a Wilson Electronics Amplifier we recommend using the 2 ft. coax extension cable, however any length of this 9913 cable can be used.. Features:. Covers Cellular, GSM, PCS, DCS DC Continuity maintained for BDA's 500 Watt power rating N-Female Connectors Can be wired in series (daisy-chained) to power up to 20 antennas 800 MHz band (Cellular & iDEN) / 1900 MHz band 75 percent of the signal strength is sent through the -1.5 dB output port One output port loses 6 dB; one loses 1.5 dB ; Specifications:. Split 2-Way, 75/25 Split Frequency (MHz) 800 Description 2 Way Splitter Connectors N Female Size (in.) 4"x 4" x 1" Loss (dB) 6/1.5 (75%/25%) ; Compatible With:. Cellular, GSM, PCS, DCS ;
